Hitching and accessories

Gzunda GZ10SL and GZS bed movers

The Gzunda GZ10SL and Gzunda GZS bed movers have been designed to be adaptable to many different types of beds. It is however, necessary to configure some basic elements to ensure absolute compatibility. Please choose from the steps to configure your Gzunda bed mover.

Hitch types

Hitch Type

Specification

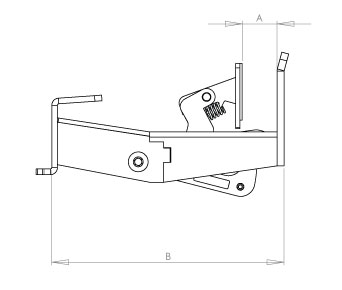

Gripper hitch kit with hitch bar

Order code:
EDHTGRIPPER001

Suits 20-40 mm bed frame.

This hitch is fully automatic and can only be used with beds with an exposed bed frame to securely “grip” to.

The gripper hitch is available in a variety of sizes.

Can be used on both GZ10SL and GZS models.

bed mover gripper hitch

Flex hitch kit with hitch bar

Order code:
EDHTFLEX001

The flex hitch provides the maximum compatibility between most hospital beds and the Gzunda bed mover.

Can be used on both GZ10SL and GZS models.

bed mover flex hitch

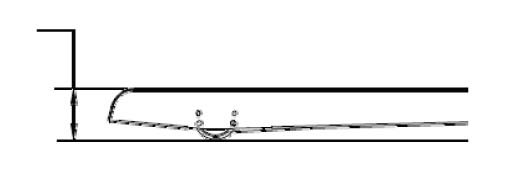

Tyne height

Type

Specification


GZ10SL
tyne

Height: 80 mm - D75 drive wheel fitted

gzunda bed mover tyne height

Accessories

Description

Part Code (Factory-fitted)



Battery upgrade

BA1175F



Oxy bottle holder

GM1918F



Retrofittable hitch kits to suit the common hitch bars above (to enable multiple hitch styles on your bed mover):

Gripper hitch unit kit

EDHTGRIPPER001-001

bed mover gripper hitch unit kit

Flex hitch unit kit

EDHTFLEX001-001

bed mover flex hitch unit kit





Powered tugs

Hitching to loads is a critical part of operating an Electrodrive powered tug. Below are the standard hitches available for the tug range. If you don't find one that suits your equipment, we can make one that does.

Download the tug hitch information sheet.

Hitch types

Hitch Type

Suitability

Typical Application


Pin hitch

Order code: EDHT1316

Tug Compact

Trolley drawbar

Auto-latching hitch

Order code: EDHT1810-024

Tug Evo

  • Most common trolley hitch

  • Existing tug applications

Clamping hitch

Order code: EDHT1118

Tug Compact
Tug Evo

  • Roll cages

  • Linen trolleys

  • Rented trolleys

Lock-tow hitch

Order code: EDHT1300

Tug Evo

  • Trailers

  • Caravans

  • Boat trailers

Accessories and options

Description

Suitability

Part Code

Amber strobe 24V

Tug range

EL1000F

Audible beeper

Tug range

EL1080F

Ballast upgrade (per 12 kg)

Tug range

GM1910

Battery upgrade for extended run time

Tug Evo

BA1020F

Non-marking grey tyre upgrade (size: 410/350-6)

Tug range

WH1400F

Puncture proof tyres (poly-filled, size: 410 x 350-6)

Tug range

WH1410F

Puncture-proof tyres (poly-filled, size: 13/5 x 6)

Tug Evo 3.5 tonne

WH1290F

Quick-change batteries 2 x 34aH lift out (includes cable set)

Tug range

BA1050F

Quick-change batteries 2 x 45aH lift out (includes cable set)

Tug Evo

BA1060F

Spare key

Tug range

EL2710

Throttle lever guard

Tug range

GM2171F

Weather-proofing (IPX2) includes tiller component upgrade and splashguard fitted

Tug range

EL3970

Weather/dust-proofing (IP54) Includes electrical enclosure and tiller components upgrade

Tug range

EL3971
